HY-DASH FINAL DRIVE REBUILD
      Teijin-Seiki  PART # GM28VL-F-57/100-5

KOBELCO PART # YM15V00001F1


 MACHINE SHOP SERVICE AND DRIVE ASSEMBLY
KOBELCO SK160 GM28VL HY-DASH FINAL DRIVE machining the hold flange bringing the tolerance  to better than new spec. in most of these drives are out of wack right from the factory in most cases i can build them to better than new i have been building all types of final drives - transmissions-differentials - engines on and off highway
for over 30+ years call with
any parts service or final drive questions
OR
FINAL DRIVE REBUILD QUOTE.
SHOP 330-652-1234
CELL 330-503-8648




















machining the bearing hold flange.






















Remember when your final drive starts making noise or your floating seal starts leaking and you want to finish the day or the week you might finish your drive too.
$$$$$$
Its unlikely your drive will heal it self






















INSTALL NEW BEARINGS HEAT THEM DON'T BEAT THEM RV GEARS AND CAMSHAFTS PUT IN TIME IF NOT YOU WILL WISH YOU DID.

$$$$$$


























I CHECK FOR PROPER BEARING PRE-LOAD AND GEAR CLEARANCE IF YOU DON'T YOU WILL HAVE PREMATURE DRIVE FAILURE.
$$$$$$$$$$


















​

​



PUT YOU HAMMER AND CHISEL AWAY
THIS IS NOT A JOB FOR YOUR LOCAL CHISELER.

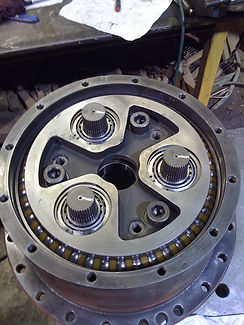

     INSTALL FLOATING SEAL-BEARING RACES & HUB




















INSTALL THE RV GEARS -DRIVE PINS TOP BEARING & BEARING HOLD FLANGE-BEARING RACES-SNAP RINGS DOWELS- BOLTS AND DRIVE GEARS.






















ASSEMBLE THE DRIVE MOTOR
























lap motor parts, vane plate-swash plate-rotor -pistons- motor cover for this part you must use a lapping plate,put your grinder away it wont work. If you over look this part your case drain pressure may be too high and blow the motor shaft seal.
$$$$$$$






















INSTALL MOTOR SHAFT SEAL-BEARING-SWASH PLATE -MOTOR SHAFT-ROTOR- PISTONS - BRAKE  DISCS -
            BRAKE CYLINDER -ORINGS.


















INSTALL BEARING-DOWELL PINS & VALVE PLATE BRAKE SPRINGS.


















INSTALL MOTOR COVER DON'T LOOSE THE SPRINGS.


















INSTALL THE BRAKE VALVE TURN THE DRIVE  OVER INSTALL THE COUPLER & SUN GEAR IN TIME AND THE STEEL BALL INSTALL THE COVER.
WHEN YOUR DRIVE MOTOR SIDE OF YOUR FINAL DRIVE IS GROUND UP REPLACING YOUR FINAL DRIVE  MIGHT NOT FIX YOUR PROBLEM YOUR MACHINE MIGHT HAVE HYDRAULIC SYSTEM  ISSUES WITCH NEED ADDRESSED BEFORE YOU INSTALL A NEW OR REMAN DRIVE.









SCHULTZ













CLEAN & PRIME FEED THE DOG & NOW IT'S TIME TO
  DRINK A BEER.

 Teijin-Seiki  PART # GM28VL-F-57/100-5
KOBELCO PART # YM15V00001F1
parts list new parts
bearings
floating seal
motor shaft & coupler
motor shaft seal
o-rings on brake piston
o-rings on motor cover-gear cover
o-rings in valves
bolts
gear oil
90 DAY WARRANTY
PURCHASE PRICE
$$$$$
SOLD

CALL WITH ANY PARTS-SERVICE
OR ANY FINAL DRIVE QUESTIONS.
OR
FINAL DRIVE REBUILD QUOTE.
 INSTLATION AVAILABLE AT OUR SHOP IN
 NILES ,OHIO.
